How do I measure the stroke on a Push Pull cable? |
| Variations Push pull cables are available with either a bulk head on each side, a groove on either side or a combination of bulk head and groove. |

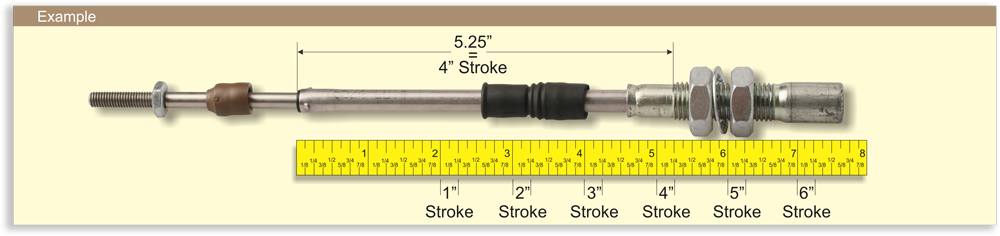

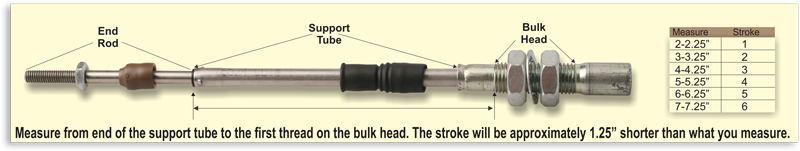

| How To Measure? The stroke on a push-pull cable can be calculated by measuring from the end of the support tube to the first thread on the bulk head or on a groove mounted cable you will measure to the front edge of the groove. The stroke is approximately 1.25” shorter than what you measure. |
| (Click to view a printable PDF version) |
 |
 |
| (Click to view a printable PDF version) |
|
|
